Name: 1 HP 1760 RPM 230/460 Volt AC 3Ph 143TC Leeson Electric Motor 121179.00 [501459]
Brand: LEESON
SKU: 501459
Availability: InStock

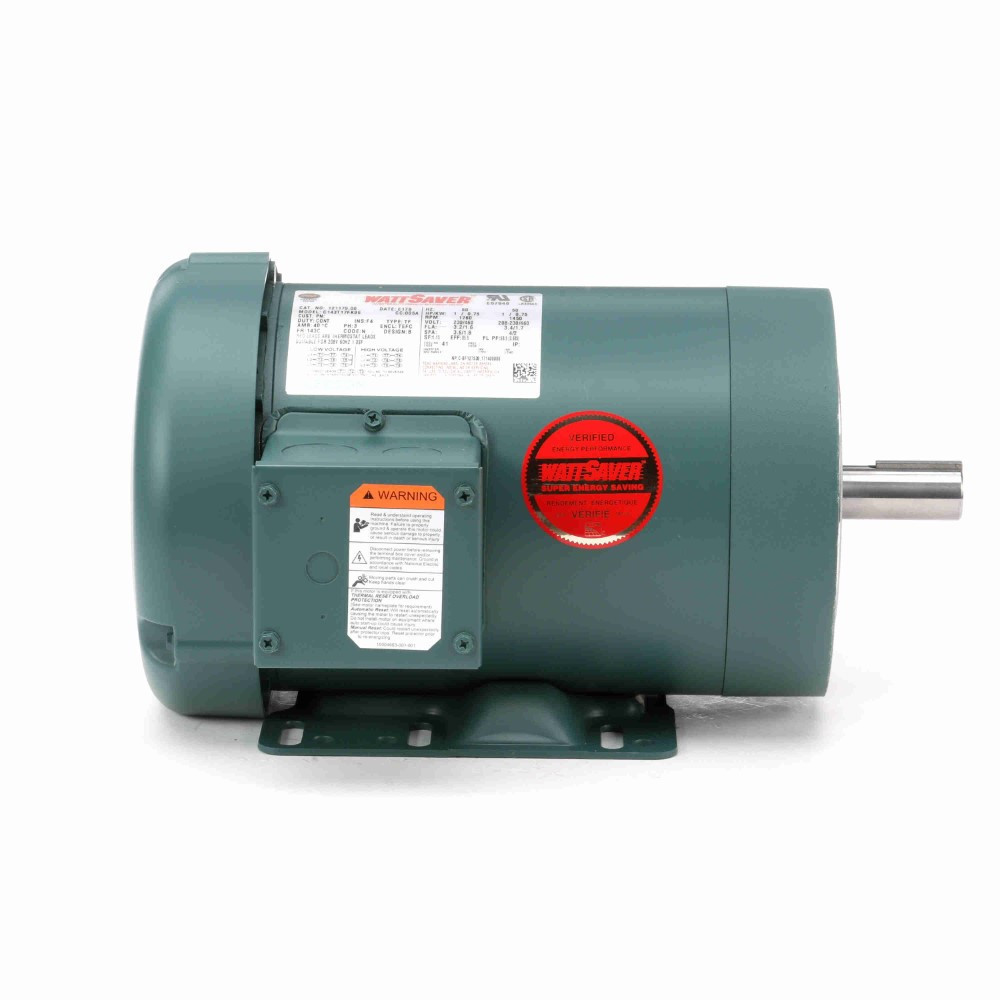

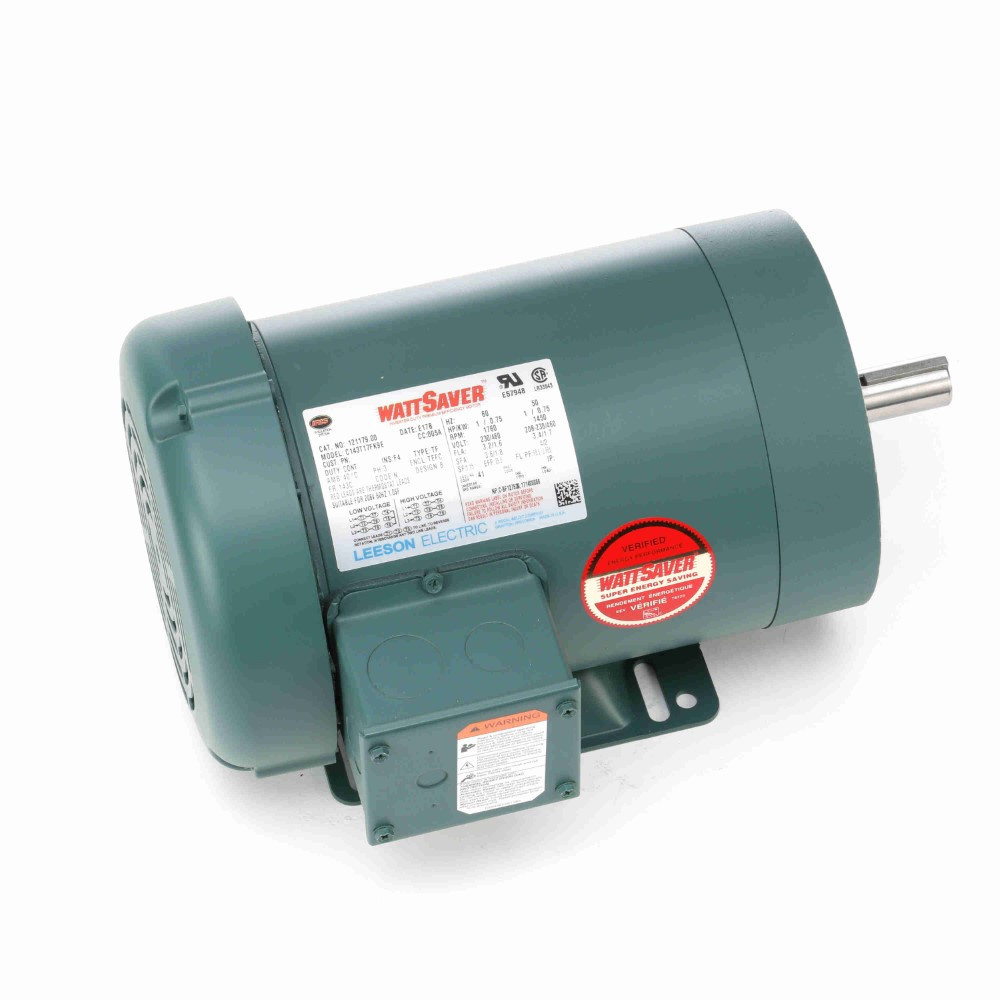

1 HP 1760 RPM 230/460 VOLT AC 3PH LEESON MOTOR
Brand new, LEESON model# 121179.00 3-Phase general purpose motor. Rolled steel frame.

SPECIFICATIONS

Power 1 HP
Voltage 230/460 Volt AC
Phase 3
Frequency 60 Hz
Amperage 3.2/1.6 Amps
Speed 1760 RPM
Rotation Reversible
Service Factor 1.15
Bearings Ball
Thermal Overload Protection None
Enclosure TEFC
Duty Continuous
Frame 143TC
Base Mount Six 0.88" x 0.34" elliptical slots on 5.50" x 3" and 5" centers
Face Mount Four 3/8"-16 threaded holes in motor face on 5-7/8" B.C., 4-1/2" pilot
Shaft 7/8" dia. x 2.13" overall length w/ 3/16" wide x 1-3/8" long keyway
Size 10.16" x 8.64" x 7.32"
Shpg. 35 lbs.
